Characteristic words (keywords) per cluster — hg

For a clustered hypergraph, ranks each cluster's hyperedges – on a nodes = "doc" text_hypergraph(), its words – by one of four scores computed from the hypergraph, or by a score table supplied from another fit. This is the topic-description step that turns a partition from hg_cluster() into named topics.

Usage

hg_keywords(
  hg,
  clusters,
  n = 10L,
  type = NULL,
  sort_by = c("score", "share"),
  min_docs = 1L,
  centrality = c("pagerank", "clique", "Z", "H"),
  scores = NULL,
  collapse = FALSE
)

# S3 method for class 'hypernets_keywords'
print(x, ...)

# S3 method for class 'hypernets_keywords'
plot(x, value = c("score", "share"), label = TRUE, ncol = NULL, ...)

Arguments

hg: The hypergraph the clustering was computed on, or the sentence hypergraph of the same documents (see Sentence scope).
clusters: The tidy table returned by hg_cluster() (columns node, cluster), or a named vector of cluster labels.
n: Keywords per cluster (default 10); Inf returns all.
type: Which score ranks the words: any of "mass", "frequency", "ctfidf", "centrality". Several at once give one block of rows per score. Default "mass", or none when only scores is wanted.
sort_by: "score" (default) ranks a cluster's words by the selected score, the heavy vocabulary; "share" ranks them by the fraction of the word's total score that falls in the cluster, the distinctive vocabulary. Ties are broken by the other column, then alphabetically.
min_docs: Keep only words that occur in at least this many of the cluster's documents (default 1). The support floor that stops sort_by = "share" from surfacing words a cluster owns because they occur once.
centrality: For type = "centrality", the hg_centrality() measure: "pagerank" (default; it reads the incidence weights and does not tie on words present in every document, as the clique measure does), "clique", "Z" or "H".
scores: An external score table (columns node, word and one numeric column), summed per cluster and added as its own block.
collapse: If TRUE, return one row per type and cluster with the words joined into a single comma-separated string – a display table, not tidy data. Default FALSE.
x: For plot() and print(): a table returned by hg_keywords().
...: Unused; for S3 consistency.
value: For plot(): which column the bars show, "score" (default) or "share"; match it to sort_by.
label: For plot(): print each bar's value at its end (default TRUE).
ncol: For plot(): panels per row; default one column per score type, so clusters run down and types across. With a single type and many clusters, pass e.g. ncol = 4.

Value

A base data.frame of class hypernets_keywords, one row per type-cluster-keyword triple, columns type, cluster, size (the cluster's documents), rank, word, score (the selected score), share (score divided by the word's summed score over all clusters) and n_docs (the cluster's documents containing the word), ranked by sort_by within type and cluster; only words with a positive score and at least min_docs documents appear. With collapse = TRUE: one row per type and cluster, columns type, cluster, size and words. The print method shows the collapsed view, truncated to the console width; the returned table itself is the long form. Raises hypernets_bad_input for unknown node names, a type that needs the token layer on a hypergraph without one, a malformed scores table, or a bag-of-words text_hypergraph(nodes = "word"), whose hyperedges are documents rather than words.

plot() returns a ggplot: one panel per cluster (rows) and score type (columns), each with its own word axis, horizontal bars of value per word, Okabe-Ito fill by type. It needs the long form and raises hypernets_bad_input on a collapsed table.

Details

"mass" (default): the summed incidence weight a cluster's documents place on the word (tf-idf mass under weight = "tfidf", counts under weight = "n"). Works on any hypergraph.
"frequency": the raw token count of the word in the cluster's documents, whatever the incidence weighting.
"ctfidf": class-based tf-idf (Grootendorst 2022), the topic representation BERTopic uses: the cluster's L1-normalised term frequency times log(A / f_w + 1), where f_w is the word's corpus count and A the average token count per cluster (truncated to an integer, as in the reference implementation).
"centrality": the word's centrality within the cluster's own word hypergraph (words as nodes, the cluster's documents as hyperedges, incidence = the stored weights), from hg_centrality() with the measure named in centrality.

"frequency", "ctfidf" and "centrality" need the token-level layer of a bag-of-words document hypergraph (construction = "bag", nodes = "doc"); other hypergraphs raise hypernets_bad_input.

Sentence scope. When hg is a text_hypergraph(construction = "sentence") of the documents, clusters still names documents, and the scores are computed over the cluster's sentences: two words are then related by sharing a sentence rather than a document. "mass" and "frequency" sum the in-sentence counts; "centrality" is the word's centrality among the cluster's sentence hyperedges.

External scores. scores takes a data.frame with columns node, word and one numeric column (for instance the attention table from hg_hypergat(what = "attention")). Its values are summed per cluster and reported as their own block, labelled by the numeric column's name.

References

Grootendorst, M. (2022). BERTopic: Neural topic modeling with a class-based TF-IDF procedure. arXiv:2203.05794.

Examples

hg <- text_hypergraph(c(
  cooking_1 = "simmer the soup with onions and carrots",
  cooking_2 = "this soup recipe needs salt on a cold night",
  space_1 = "the telescope revealed a distant galaxy and stars",
  space_2 = "astronomers aimed the telescope at the stars all night"
), stop_words = c("the", "with", "and", "a", "this", "at", "on", "all"))
topics <- hg_cluster(hg, k = 2, seed = 1)
hg_keywords(hg, topics, n = 3)
#>  type cluster   size words
#>  mass Cluster 1 2    soup, carrots, cold
#>  mass Cluster 2 2    stars, telescope, aimed
#> 6 rows in the returned long table (rank, score, share, n_docs)
hg_keywords(hg, topics, n = 3, type = "ctfidf")
#>  type   cluster   size words
#>  ctfidf Cluster 1 2    soup, carrots, cold
#>  ctfidf Cluster 2 2    stars, telescope, aimed
#> 6 rows in the returned long table (rank, score, share, n_docs)
words <- hg_keywords(hg, topics, n = 4,
                     type = c("frequency", "ctfidf", "centrality"))

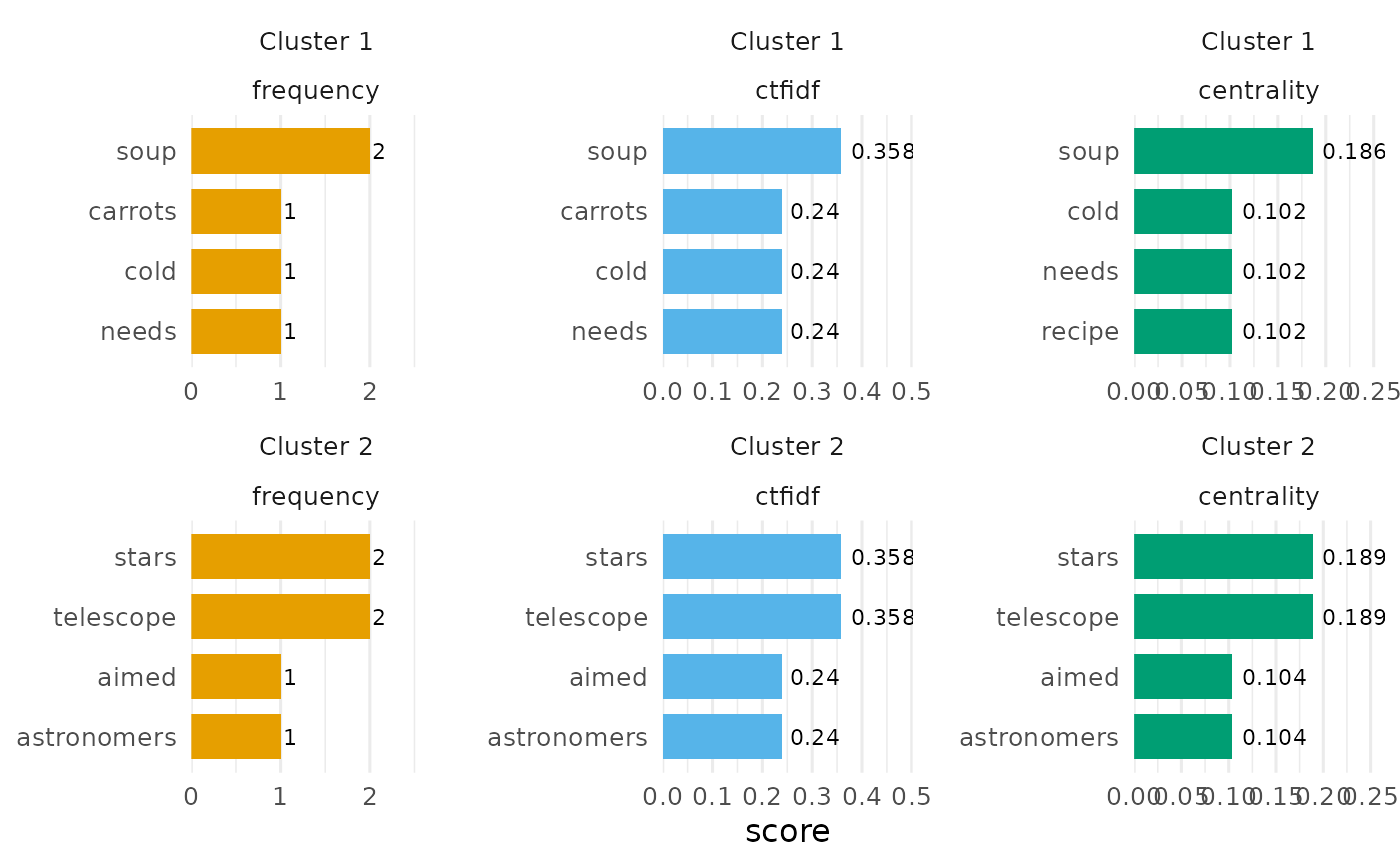

plot(words)

# distinctive rather than heavy vocabulary: rank by share, with support
hg_keywords(hg, topics, n = 3, sort_by = "share", min_docs = 1)
#>  type cluster   size words
#>  mass Cluster 1 2    soup, carrots, cold
#>  mass Cluster 2 2    stars, telescope, aimed
#> 6 rows in the returned long table (rank, score, share, n_docs)
